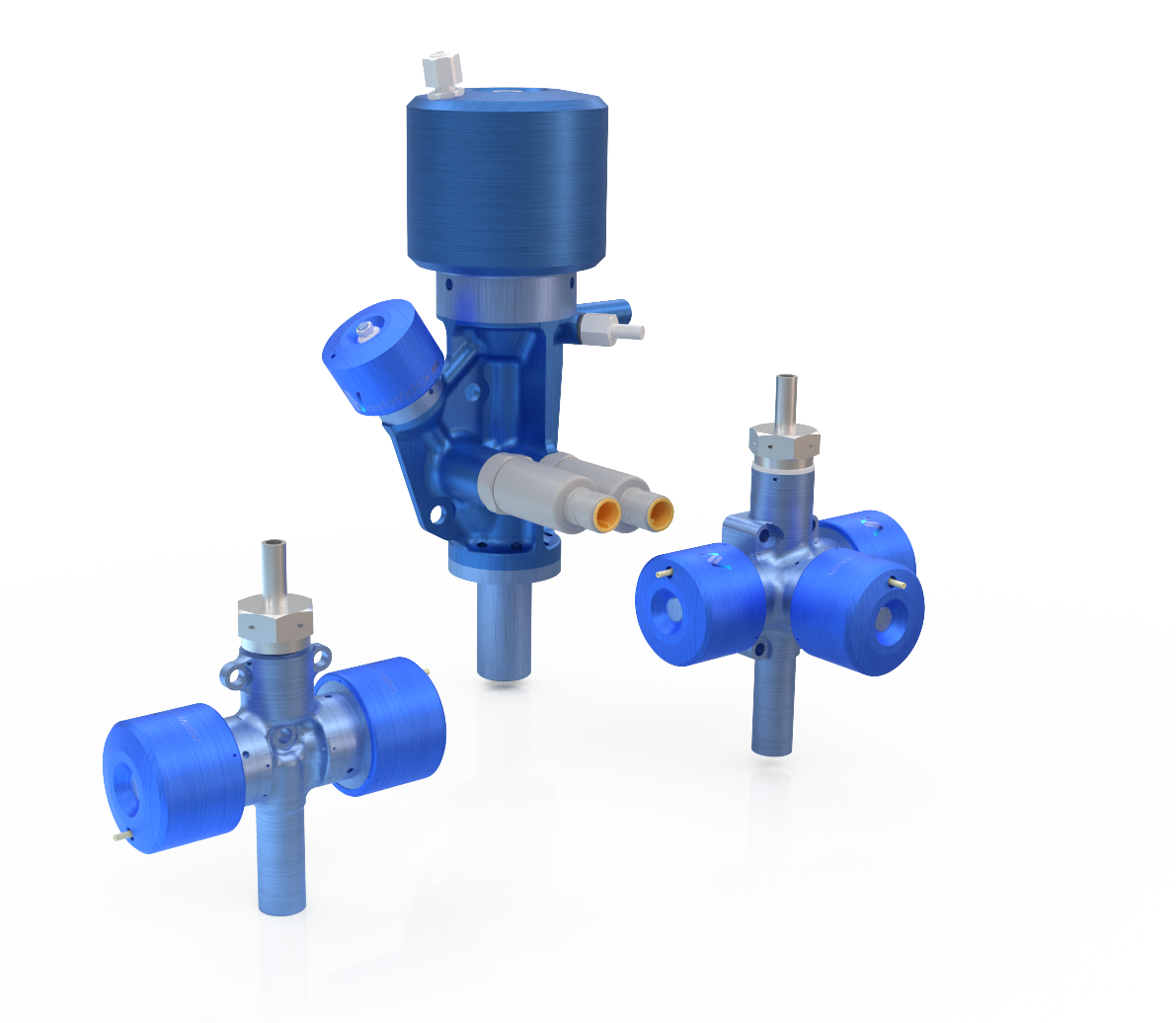

Closed-loop pressure regulator
Including controller electronics & SW (plug-and-play)
Normally closed EV design; cycled for pressure control
| Differential Pressure | up to 320 bar |
| Operating Pressure | up to 480 bar |
Setting Pressure | 1 – 50 bar |
Temperature | 250K – 323K |
Mass | 450g |
Actuator | 8W/65W at 24-28V, opening time <35 ms |
Media | H2, inter gas, hydrocarbons, storables and more |
Maturity | TRL 5 |
Lead times | 14 weeks |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
| Differential Pressure | up to 230 bar |
| Operating Pressure | up to 480 bar |
Regulated Pressure | 1 – 50 bar |
Temperature | 250K – 323K |
Mass | 700g |
Actuator | 8W/65W at 24-28V, opening time <35 ms |
Media | H2, inter gas, hydrocarbons, storables and more |
Maturity | TRL 5 |
Lead times | 14 weeks |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
|
Regulated Pressure
|
1 – 50 bar
|
|
Temperature
|
160K – 400K
|
|
Mass
|
2500g
|
|
Actuator
|
20W (@20V)/150W at 24-28V, opening time <30/60 ms
|
|
Media
|
H2, inter gas, hydrocarbons, storables and more
|
|
Maturity
|
TRL 5
|
|
Lead times
|
14 weeks
|
