E.5a
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 233K – 343K
Optional: 77K – 343K |
| Nominal diameter | 0.5 mm – Kv 0.006 m³/h |
| Normal state | Normally closed |
| Weight | 70 g |
| Dimensions | Ø27 x 63mm³ |
| Opening/closing time | <15ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 7 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
E1a
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 233K – 343K
Optional: 77K – 343K |
| Nominal diameter | 1 mm – Kv 0.04 m³/h |
| Normal state | Normally closed |
| Weight | 180 g |
| Dimensions | Ø34 x 57mm³ |
| Opening/closing time | <30ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.

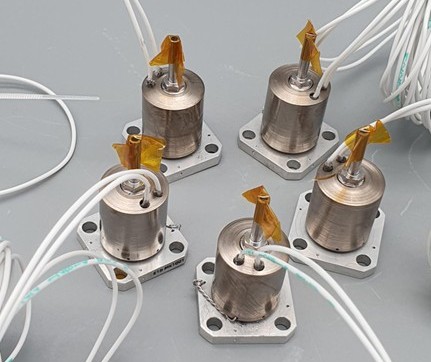

E1b
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 70 bar |
| Temperature range | 233K – 343K |
| Nominal diameter | 1 mm – Kv 0.04m³/h |
| Normal state | Normally closed |
| Weight | 52 g |
| Dimensions | Ø27 x 47mm³ |
| Interfaces | 1/8 “ tube + flange OR 2 x 1/8” tube, adaptable |
| Opening/closing time | <15ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 7 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
L1a
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 400 bar |
| Temperature range | 253K – 373K |
| Nominal diameter | 1 mm – Kv 0.03m³/h |
| Normal state | Bi-stable |
| Weight | 160 g |
| Dimensions | Ø34 x 71mm³ |
| Opening/closing time | <35ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short term) |
| Maturity | TRL 4 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
E2a
| Differential Pressure | up to 100 bar |
| Operating Pressure | up to 240 bar |
| Temperature range | 233K – 343K
Optional: 77K – 343K |
| Nominal diameter | 2 mm – Kv 0.11m³/h |
| Normal state | Normally closed |
| Weight | 180 g |
| Dimensions | Ø34 x 42mm³ |
| Opening/closing time | <35ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 6 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
E2b
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 240 bar |
| Temperature range | 233K – 373K
Optional: 77K – 373K |
| Nominal diameter | 2 mm – Kv 0.08m³/h |
| Normal state | Normally closed |
| Weight | 160 g |
| Dimensions | Ø34 x 72mm³ |
| Opening/closing time | <50ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 6 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.

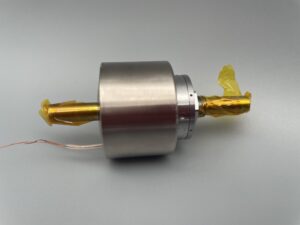

L2a
| Differential Pressure | up to 70 bar |
| Operating Pressure | up to 70 bar |
| Temperature range | 253K – 343K |
| Nominal diameter | 2 mm – Kv 0.08m³/h |
| Normal state | Bi-stable |
| Weight | 160 g |
| Dimensions | Ø34 x 71mm³ |
| Opening/closing time | <30ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
E3b
| Differential Pressure | up to 300 bar |
| Operating Pressure | up to 300 bar |
| Temperature range | 233K – 343K |
| Nominal diameter | 3 mm – Kv 0.21m³/h |
| Normal state | Normally closed |
| Weight | 190 g |
| Dimensions | Ø34 x 62mm³ |
| Opening/closing time | <30ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
E4b
| Differential Pressure | up to 100 bar |
| Operating Pressure | up to 100 bar |
| Temperature range | 233K – 343K
Optional: 77K – 343K |
| Nominal diameter | 4 mm – Kv 0.5m³/h |
| Normal state | Normally Closed |
| Weight | 450 g |
| Dimensions | Ø48 x 56mm³ |
| Opening/closing time | <50ms |
| Media | Inert gases, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.

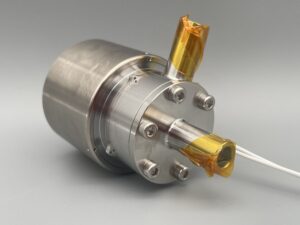

L4a
| Differential Pressure | up to 30 bar |
| Operating Pressure | up to 30 bar |
| Temperature range | 253K – 343K |
| Nominal diameter | 4 mm – Kv 0.56m³/h |
| Normal state | Bi-stable |
| Weight | 520 g |
| Dimensions | Ø45 x 77mm³ |
| Opening/closing time | <60ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.

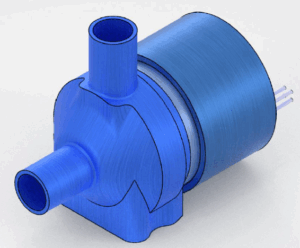

L17a
| Differential Pressure | up to 30 bar |
| Operating Pressure | up to 30 bar |
| Temperature range | 253K – 343K |
| Nominal diameter | 12.2 mm – Kv 5.94m³/h |
| Normal state | Bi-stable |
| Weight | 800 g |
| Dimensions | 90 x 110 x 65mm³ |
| Opening/closing time | <30ms |
| Media | Inert media, Hydrocarbons, H2, O2
Optional: Storables, N2O, HTP (short-term) |
| Maturity | TRL 5 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.

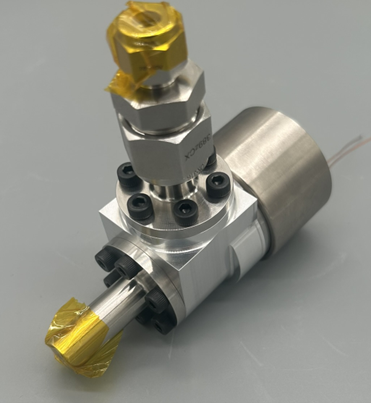

P8a
| Differential Pressure | up to 400 bar |
| Operating Pressure | up to 600 bar |
| Temperature range | 80K – 400K |
| Nominal diameter | 8 mm – Kv 1.55m³/h |
| Normal state | Piloted |
| Weight | 680 g |
| Dimensions | 110 x 88 x 47mm³ |
| Opening/closing time | <15ms @ 300 bar |
| Media | Inert media, Hydrocarbons, H2
Optional: Storables, N2O, HTP |
| Maturity | TRL 3 |
| Lead times | Starting at 10 weeks from order intake (batch size dependent) |
Note: The values shown represent the upper performance limits, with actual configurations optimized for the best balance of parameters to meet your application needs and budget.
